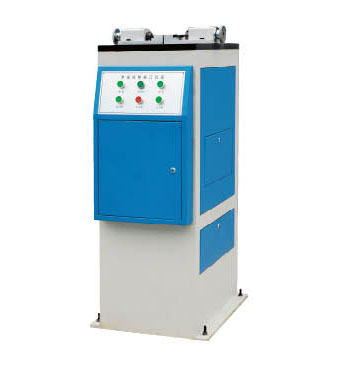

CSL-B impact specimen notch electric broaching machine



Product Name: CSL-B impact specimen notch electric broaching machine

Product introduction

impact specimen notch broaching machine at home and abroad except optical curve grinding machine can process a qualified sample notch only tool. Due to a processing principle, the processing of the same good. The series products, the current domestic can be divided into: the impact specimen notch broaching machine (single knife), the impact specimen notch broaching machine (double knife), as well as the impact specimen notch hydraulic broaching machine (double knife), the product of metal materials Charpy pendulum impact test method > (instead of), if changing the structure form and the replacement of some important parts, at the same time ASTME23-02a EN10045 iso148 in foreign countries

Product details

The broaching machine broach the use of W18Cr4V manufacturing, high hardness, good wear resistance, each tool can be processing up to 2 million specimens. Standard specimen notch depth are 2mm + 0.05, notch broaching machines using the positioning method of a sample surface, the specimen length 55mm of 1 / 2 center position, if inconsistent length 55mm, may at any time for adjusting and positioning. The factory has been adjusted according to 55mm good.

The impact specimen notch electric hydraulic broaching machine can process two V type or U type gap again. Only 8 seconds, the operation is very simple and reliable.

Technical parameters
type CSL-B/CSL-Y
Specimen notch shape standard configuration:V2 type(deep 2㎜  45º±2º  r=0.25㎜±0.025㎜)
  U2 type(deep 2㎜  width 2㎜  r=1㎜±0.05㎜)
note:(U3/U5mm Special custom)
Sample size 10×10(7.5/5)×55mm
Cutting mode / lubrication system Electric hydraulic / lubricating oil automatic cycle, adjustable volume
broach travel 340±10mm

Broach material

W18Cr4V
Pulling speed 2~3m/min(可调)
power supply 380V,0.37Kw
external dimensions 650*400*1200mm
weight 180kg
